Guitar Tuner - Tune guitars easily

Simple Guitar Tuner

- Convenient single-screen application that launches in auto tune mode.

- Just start the app, pluck a string, and begin tuning your guitar.

- Aim for the orange range for satisfactory results or the green for perfection.

- This app employs your device's microphone to detect the played string and advise whether to tune up or down.

- Features a pitch pipe function for additional tuning assistance.

- The standard EADGBE guitar (not optimized for very small screens) highlights the current note being played or enables quick note selection in manual mode.

- Offers a tuning range from 30 Hz (B0) to 4186Hz (C8), making it suitable for tuning various stringed instruments as well.

How it works

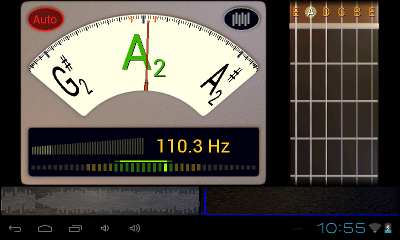

This app uses your microphone to detect the string being played and indicate if you should tune up or down. The sound wave trace (white) is shown bottom left and the frequency spectrum (blue) bottom right. The detected frequency is shown in the meter.

Guitar Tuner in Auto Mode

Functions

The Meter

The meter consist of a dial with needle pointing to the current tuning. small divisions are 2 cents and the larger ones 10 cents. The orange markers indicates plus or minus 10 cents away from the targeted note. The note color will change to reflect the distance to the target note. It will become orange when the distance is 10 cents or less and green when the distance is 5 cents or less. This is also indicated in the digital part of the meter.

The Guitar

The standard guitar (EADGBE) indicates current note being played or allows fast note selection in manual mode. If you have a tiny screen, the guitar will not be displayed.

Auto Mode

By default, the app starts in auto mode as indicated by the red auto button. In auto mode the note being played is automatically detected and the meter centered on that frequency. This allows hands free operation since your hands will be needed to tune your guitar.

Manual Mode.

By turning Auto off, the meter will stay centered at the current note which can be adjusted by either spinning the dial, or selecting the note to tune to from the guitar.

Pitch Pipe

By pressing the pitch pipe button, it will glow orange and sound the currently selected note. This works best in manual mode and using the guitar to select the note to play. Press the pitch pipe button again to turn it off.

Tuning Range

The tuning range is from 30 Hz (B0) to 4186Hz (C8), so the tuner can also be used to tune other stringed instruments. Select manual mode if necessary & spin dial to select lower frequencies.

Equal Temperament

This tuner is based on the western equal temperament scale with 100 cents between each note. There are other ways to tune a guitar. Personally I prefer to first tune the A string with a tuner and then self tune the remainder of the strings.
