Physics Toolbox Sensor Suite - Measure motion data

This application utilizes internal sensors within a smartphone to gather, exhibit, record, and export .csv data files. The precision and accuracy of sensors are reliant on the hardware of the smartphone.

Settings

* Note that not all settings are available for all sensors.

(a) Data Display: View data in graphical, digital, or vector form.

(b) Graph Display: View multi-dimensional data sets on a single shared graph or in multiple individual graphs.

(c) Displayed Axis: For multi-dimensional data on a single shared graph, select total, x, y, and/or z-axis data.

(d) CSV Timestamp Format: Record clock time or elapsed time with sensor data.

(e) Line Width: Modify visual presentation of data with a Thin, Medium, or Thick line.

(f) Sensor Collection Rate: Set collection rate as Fastest, Game, UI, or Normal. The sensor collection rate is displayed for each option when selected.

(g) Keep the Screen On: Prevent the app from turning the screen off automatically.

(h) Calibrate: Calibrate selected sensors.

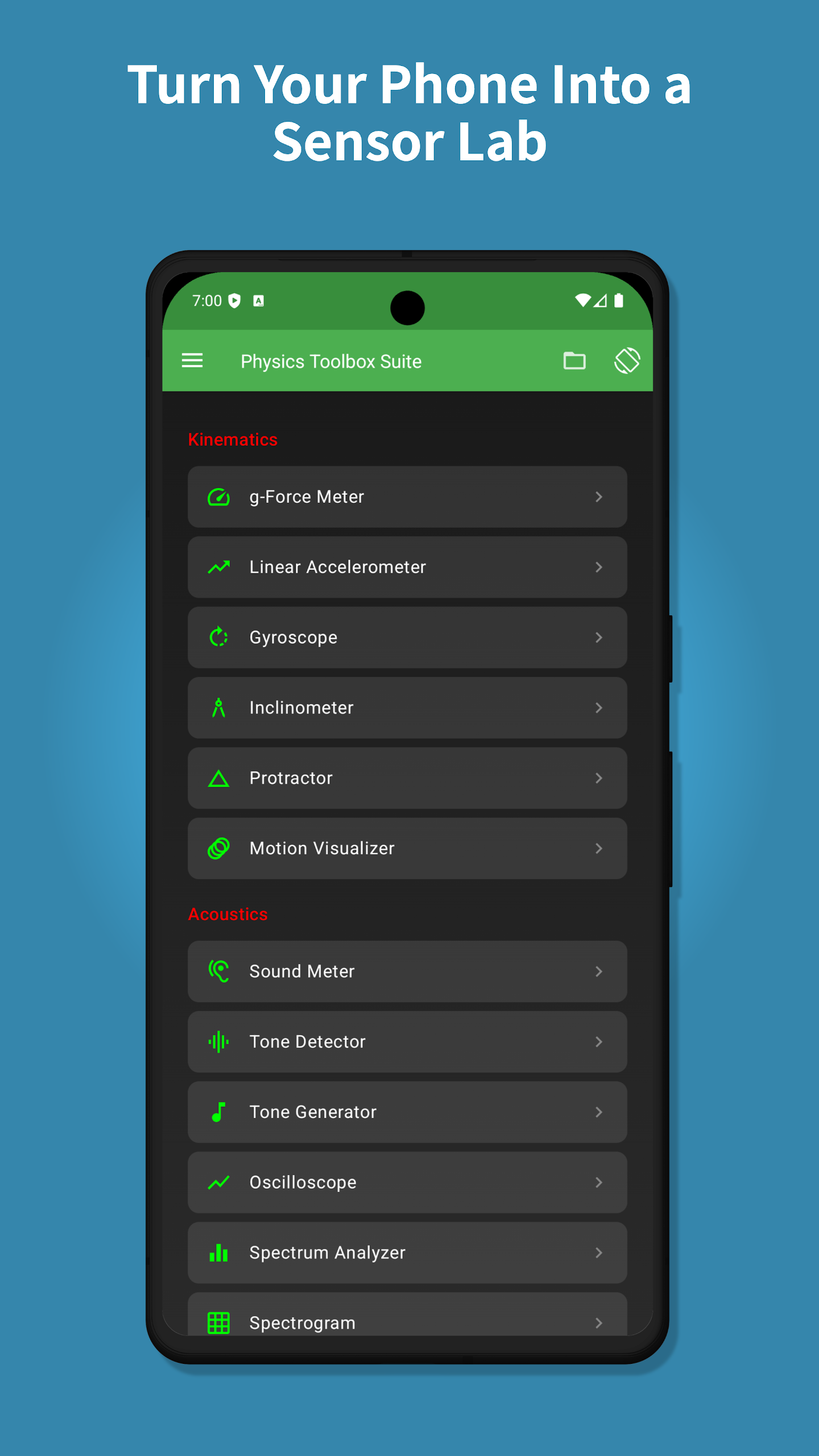

The app provides various sensors, generators, and tools for data analysis including:

KINEMATICS

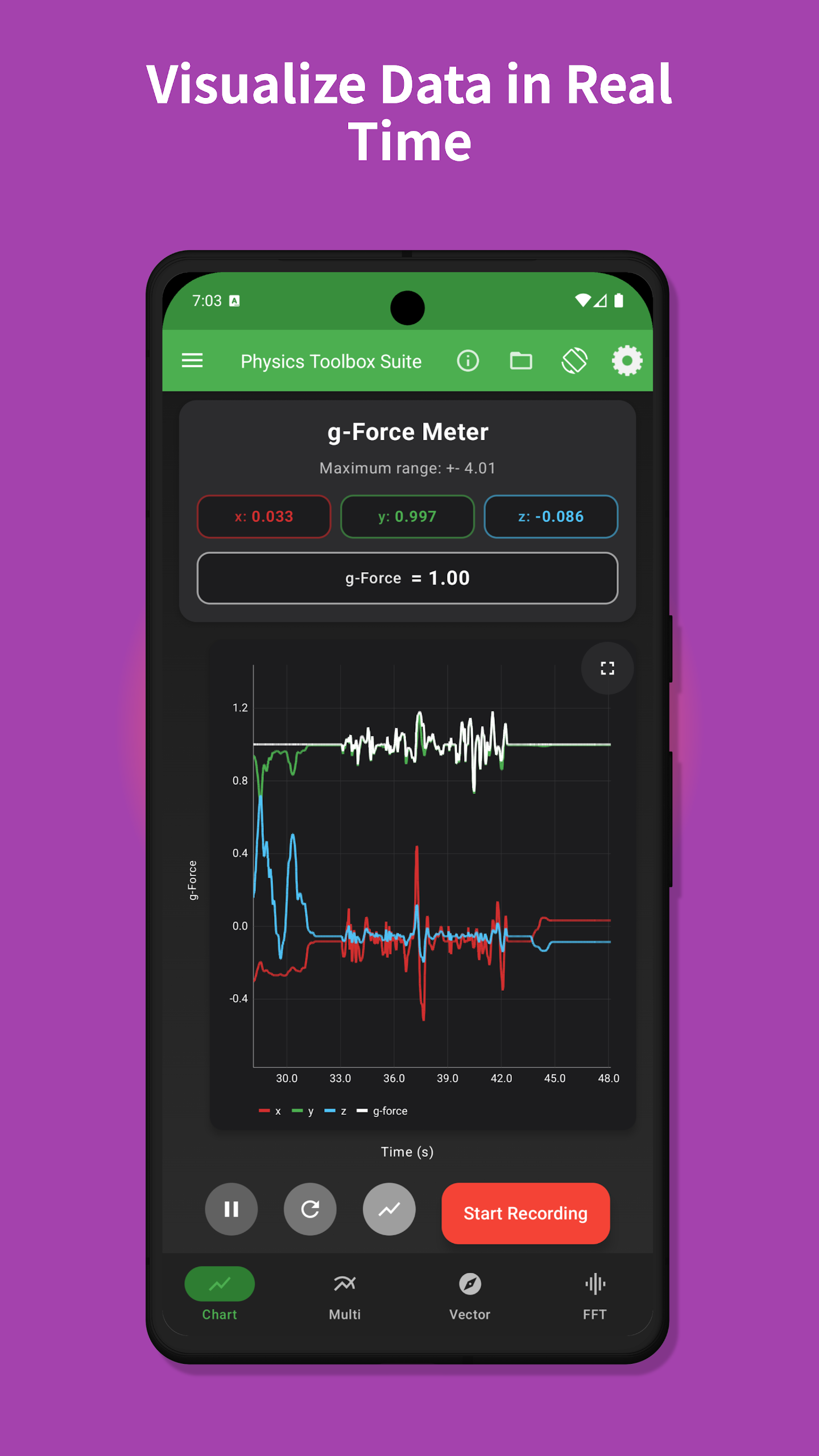

- G-Force Meter: Fn/Fg ratio (x, y, z, and/or total)

- Linear Accelerometer: acceleration (x, y, and/or z)

- Gyroscope: radial velocity (x, y, and/or z)

- Inclinometer: azimuth, roll, pitch

- Protractor: angle from vertical or horizontal

ACOUSTICS

- Sound Meter: sound intensity

- Tone Detector: frequency and musical tone

- Tone Generator: sound frequency generation

- Oscilloscope: wave shape and relative amplitude

- Spectrum Analyzer: graphical FFT

- Spectrogram: waterfall FFT

LIGHT

- Light Meter: light intensity

- Color Detector: HEX color detection within a small area on the screen via camera

- Color Generator: R/G/B/Y/C/M, white, and custom color display

- Proximeter: periodic motion and timer modes

- Stroboscope (beta): camera flash

- Wi-Fi: signal strength

MAGNETISM

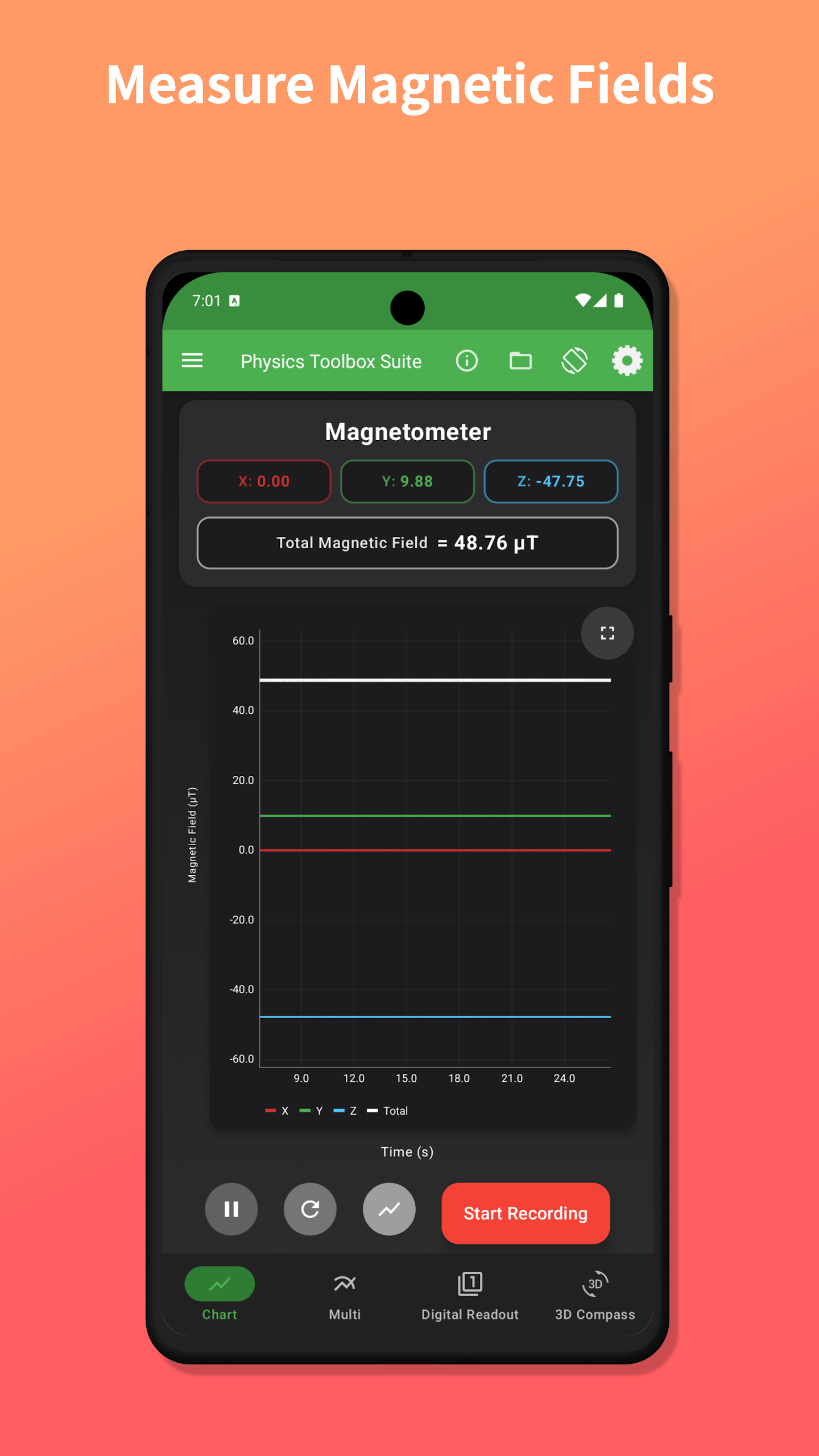

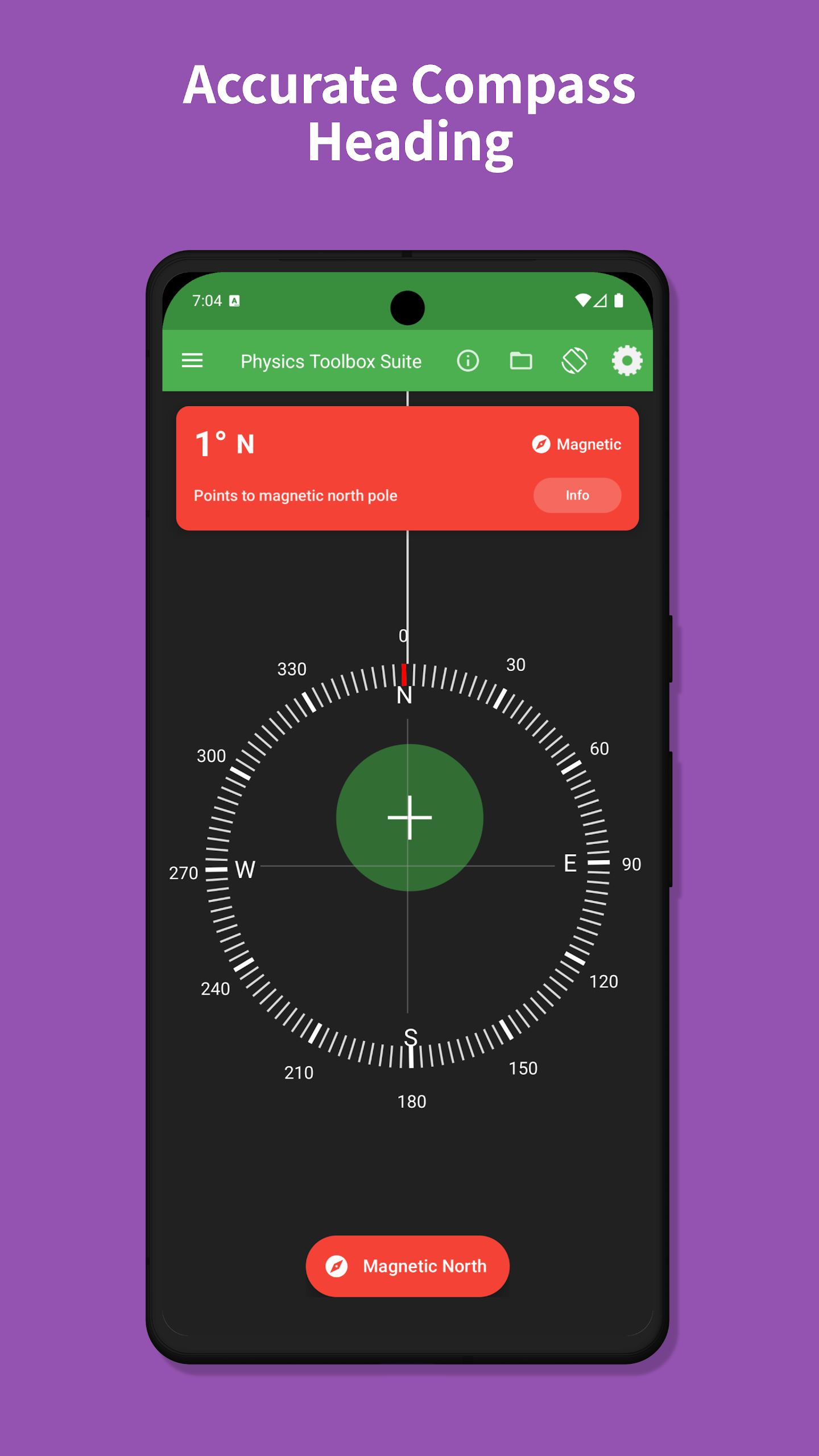

- Compass: magnetic field direction and bubble level

- Magnetometer: magnetic field intensity (x, y, z, and/or total)

- Magna-AR: augmented reality visualization of magnetic field vectors

OTHER

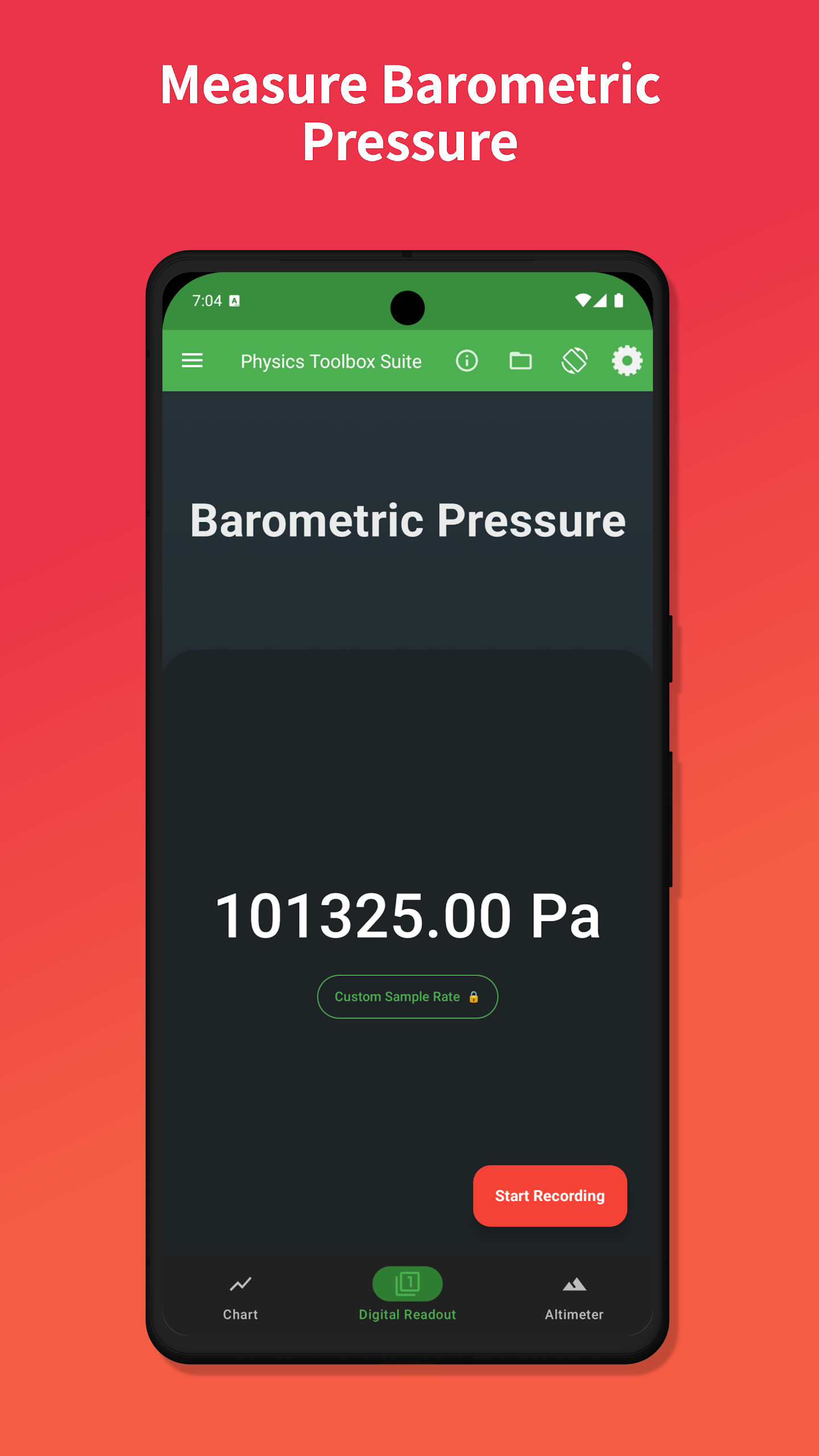

- Barometer: atmospheric pressure

- Ruler: distance measurement between two points

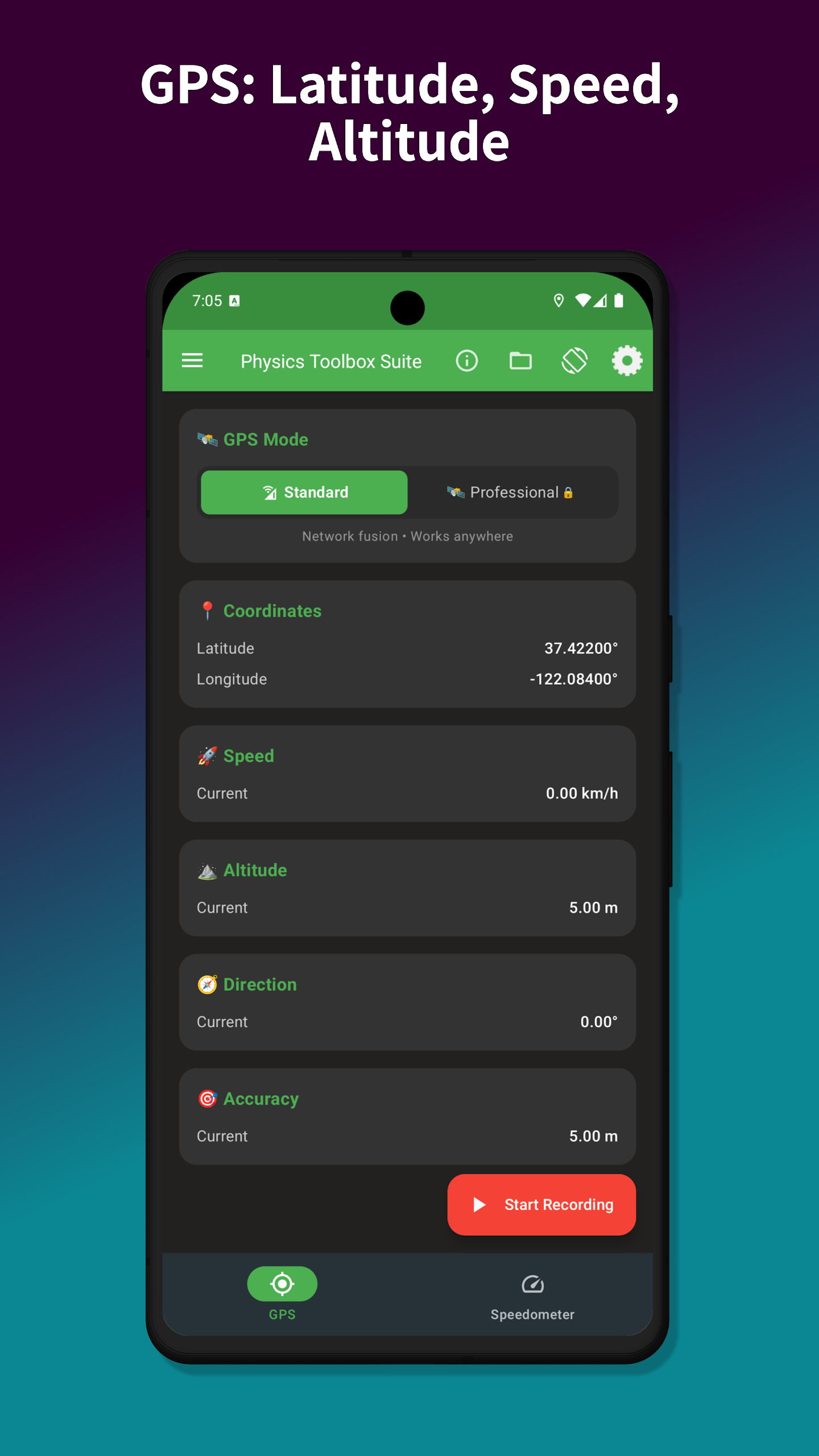

- GPS: latitude, longitude, altitude, speed, direction, number of satellites

- System Temperature: battery temperature

COMBINATION

- Multi Record: simultaneous data collection using selected sensors

- Dual Sensor: real-time display of data from two sensors on a graph

- Roller Coaster: G-Force Meter, Linear Accelerometer, Gyroscope, and Barometer

PLOTTING

- Manual Data Plot: create a graph by entering data manually

GAME

- Play: challenges

FEATURES

- Record: Save data by pressing the red floating action button

- Export: Send data via email or share on Google Drive or Dropbox

- Sensor Information: Identify sensor details and data collection rate

- SETTINGS - Various settings available for customization of sensor data representation

The app offers a wide range of functionality for data collection, analysis, and visualization using smartphone sensors.
