PROTO - Electronic circuit simulator

Are you interested in tools like Multisim, SPICE, LTspice, Proteus, Altium, or PhET simulations? That's great! PROTO is a real-time electronic circuit simulator that allows you to set up a circuit with various components and simulate the behavior of the electronic circuit ⚡

During simulation, you can monitor voltages, currents, and other variables. You can check signals on a multichannel oscilloscope and adjust your circuit in real-time! Our app can be a valuable asset for your Raspberry Pi, Arduino, or ESP32 projects. You can also utilize PROTO as a logic circuit simulator for digital electronic analysis!

ℹ️ You can report issues or request new components on Github

👉 Features:

✅ Animations of voltage values and current flows

✅ Adjustment of circuit parameters (such as voltage, current, and others)

✅ Four-channel oscilloscope

✅ Single play/pause button for simulation control

✅ Copy electronic components

✅ Learn about electronic circuits with in-app examples

✅ Share circuits with friends

✅ Themes (Dark, Light, Ocean, Solarized)

✅ Export circuits in PNG, JPG, PDF formats

✅ Export workspace

✅ Video tutorials on electronics

🔥 Future support for Arduino

FEATURES

LEARN

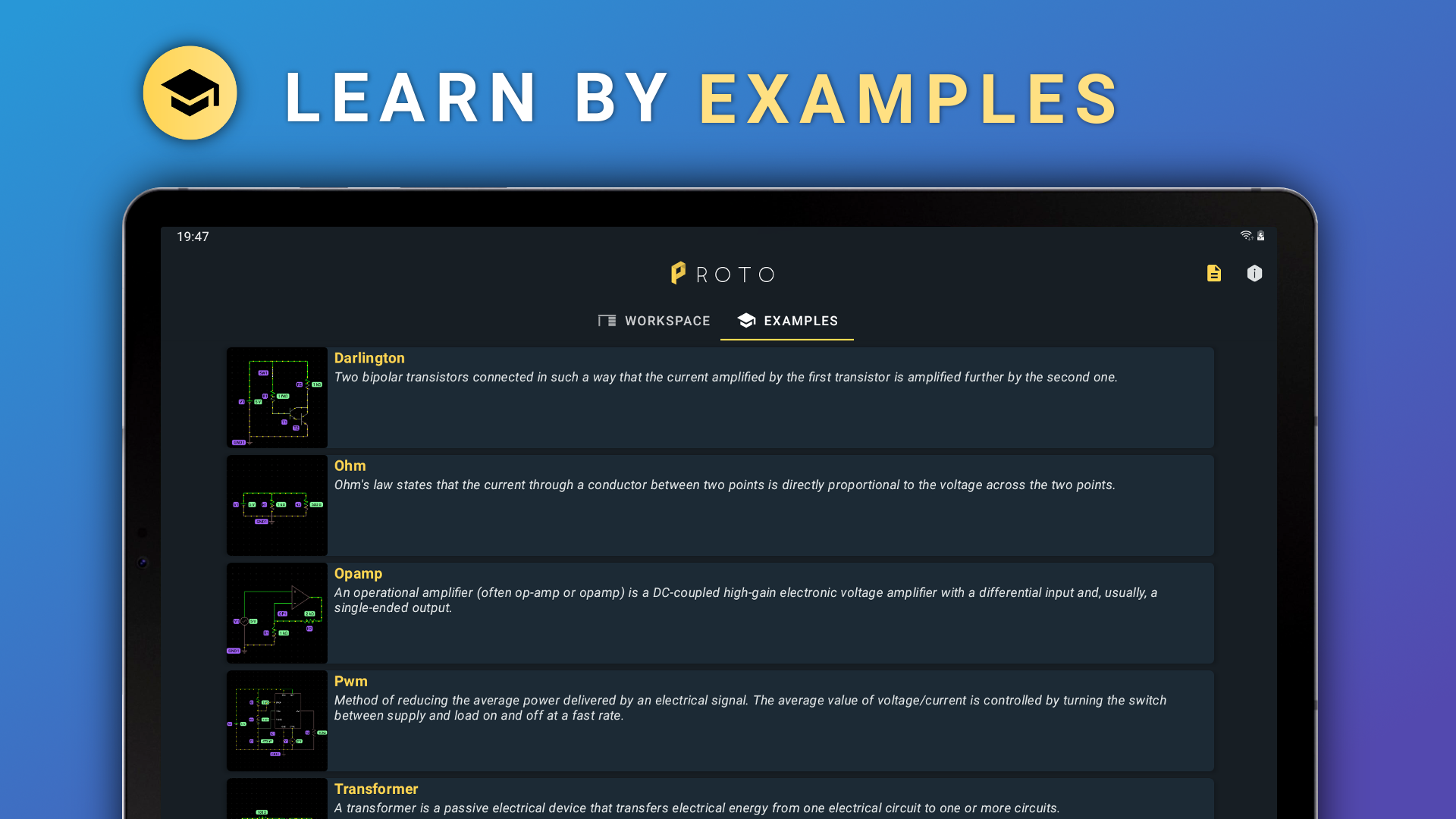

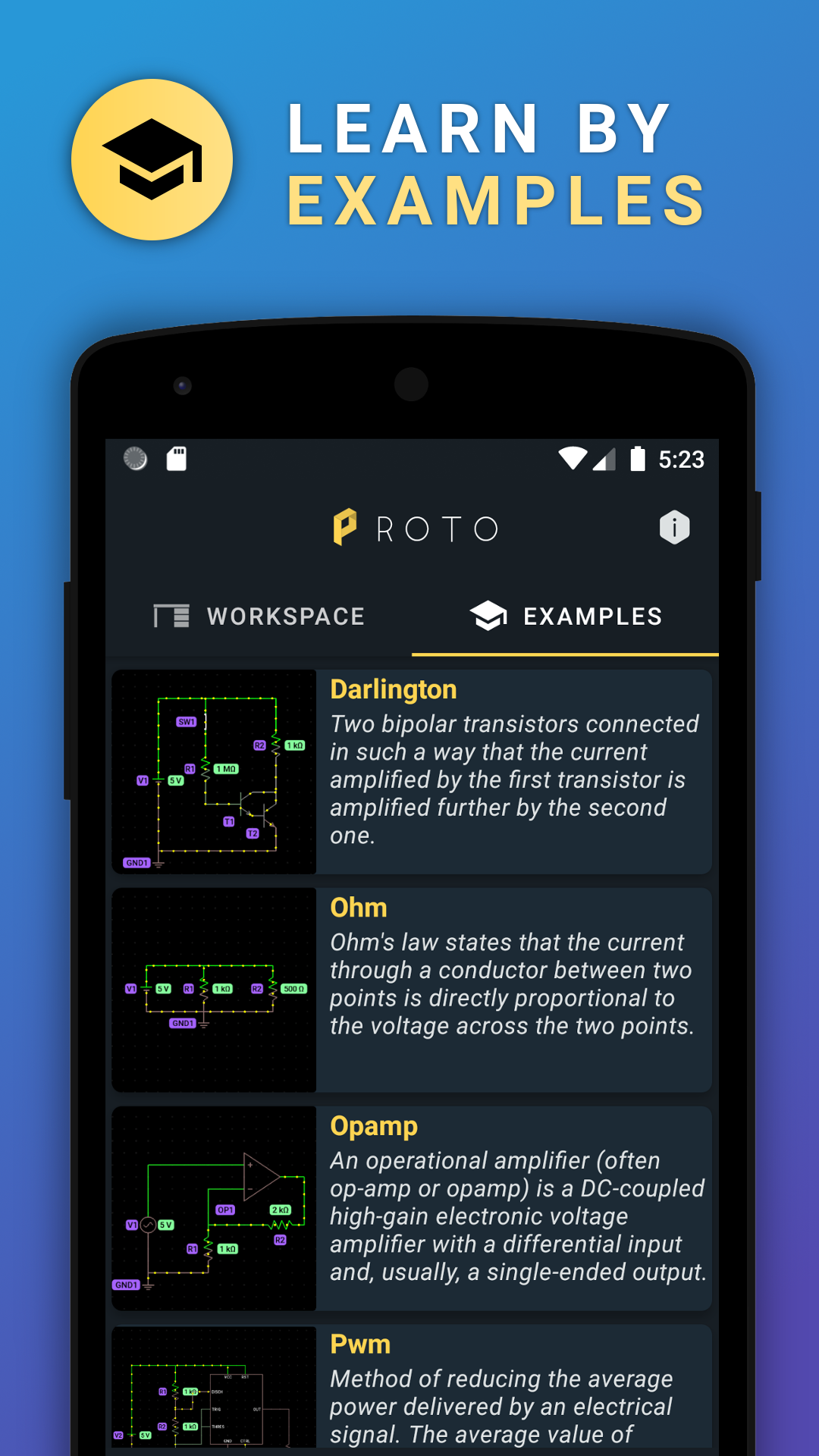

Learn electronics by using examples in PROTO application.

USE

Try many component available in our application. You can use resistor, diodes, transistors and much more!

TEST

Test and tune your circuit in real time without any risk!

OBSERVE

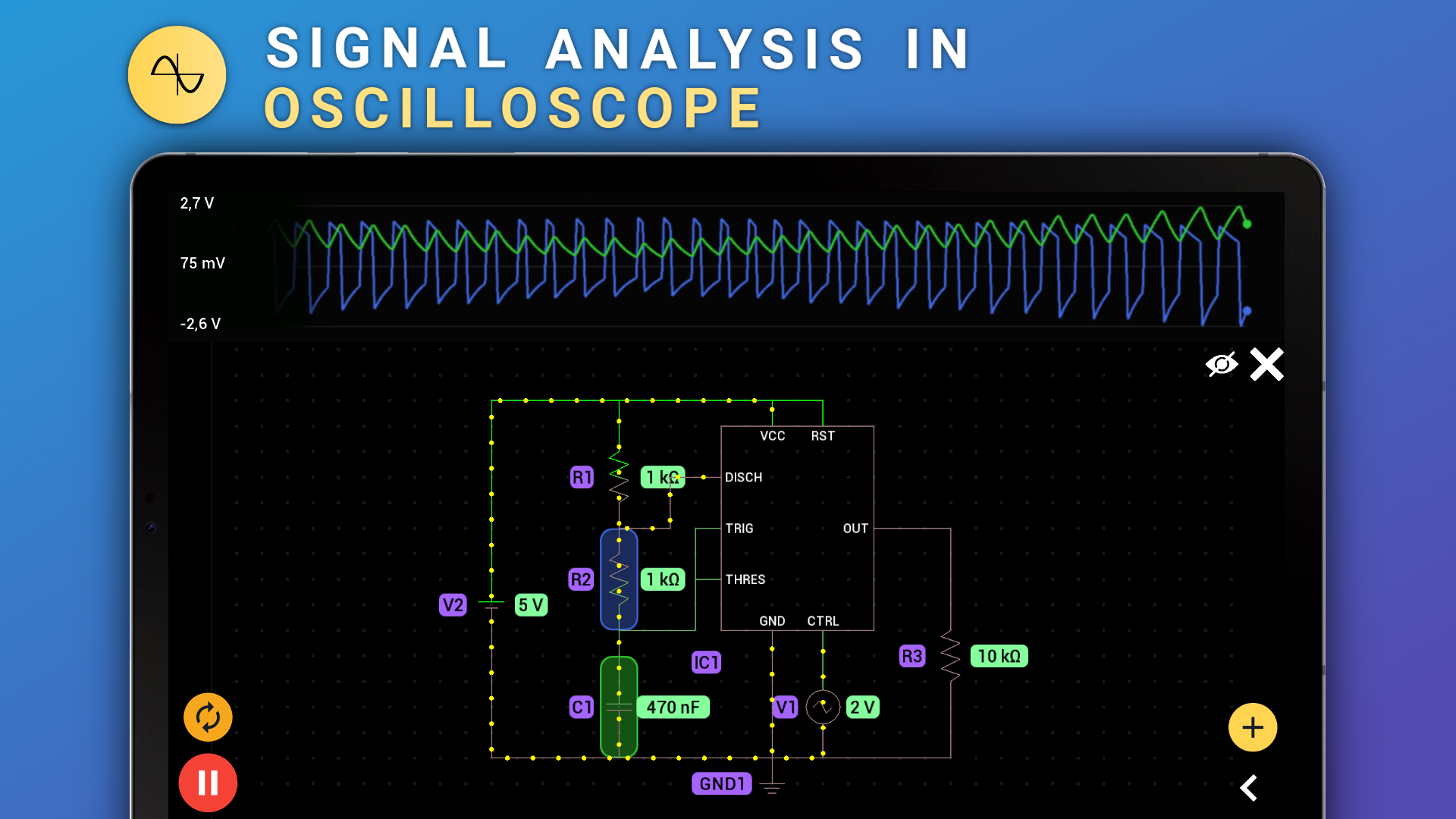

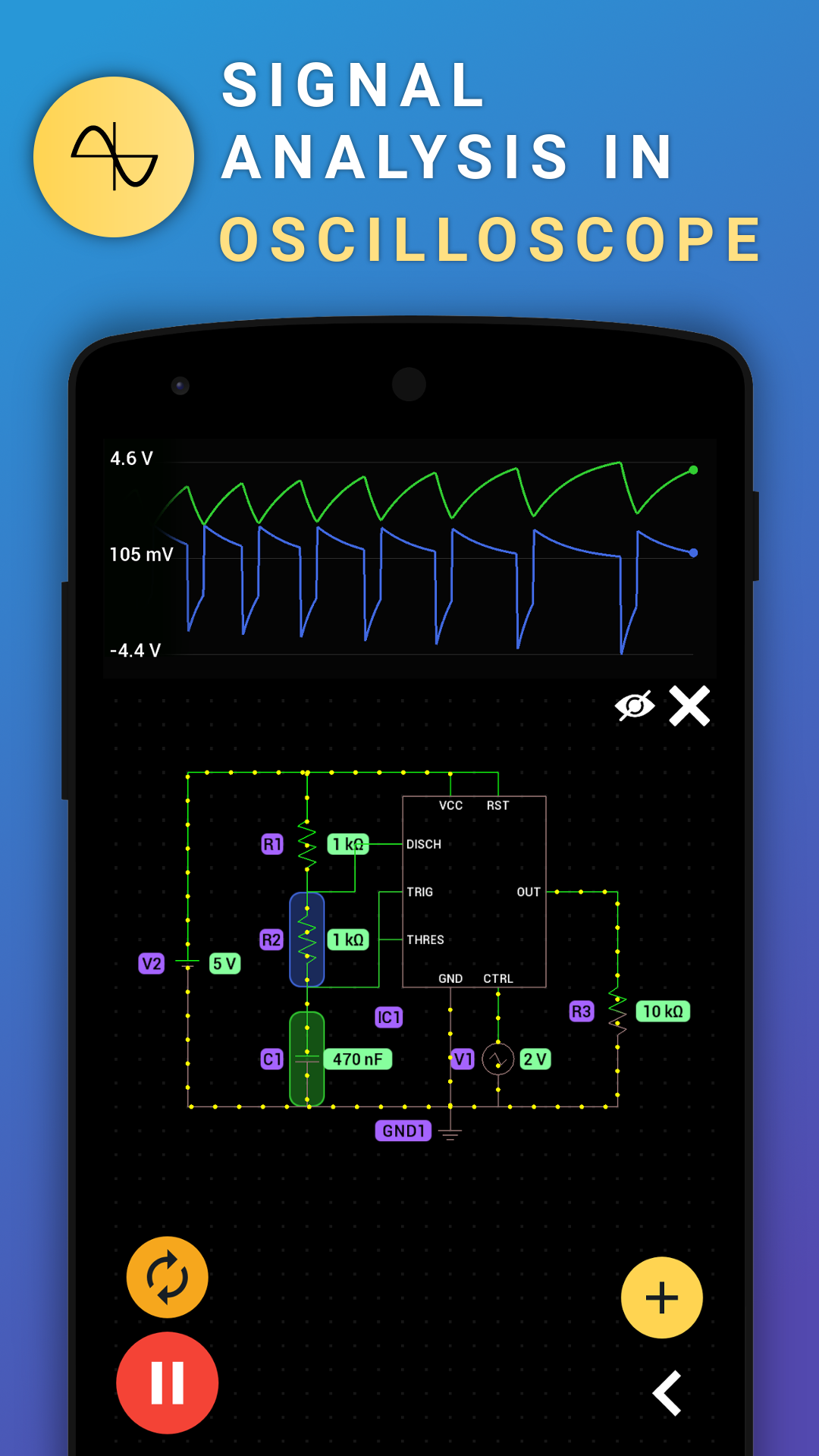

Observe signals on four channel oscilloscope and analyze them with ease.

👉 Components:

(Various electronic components such as DC/AC sources, resistors, capacitors, diodes, transistors, operational amplifiers, logic gates, sensors, etc.)

👉 Analog Pack:

(Additional analog components like tunnel diode, NTC thermistor, solar cell, etc.)

👉 Digital Pack:

(Digital components including adder, counter, flip-flops, multiplexers, demultiplexers, etc.)

👉 Misc Pack:

(Miscellaneous components like antennas, LED bars, buzzers, regulators, etc.)

👉 JavaScript Pack:

(Allows coding with JavaScript interpreter, access to IC inputs/outputs, custom ICs)

👉 7400 TTL Pack:

(TTL components such as inverters, gates, comparators, counters, etc.)

👉 4000 CMOS Pack:

(CMOS components like NOR gates, NAND gates, counters, decoders, etc.)

👉 Sensors Pack:

(A variety of sensors including pressure, gyroscope, light, magnetic field, proximity, temperature, and humidity sensors)
